A Guide to Bar Charts

In previous sections of this guide on descriptive statistics, you learned everything from constructing bar charts to when they should be used. In this section, you’ll find an overview of all you’ve learned from previous chapters, including all the different types of bar charts. In addition, we’ll also summarize the best practices for constructing and displaying bar charts.

The best Maths tutors available
4.9 (36 reviews)
Intasar
£48
/h
1st lesson free!
4.9 (28 reviews)
Paolo
£30
/h
1st lesson free!
4.9 (23 reviews)
Shane
£25
/h
1st lesson free!
5 (16 reviews)
Jamie
£25
/h
1st lesson free!
5 (17 reviews)
Matthew
£30
/h
1st lesson free!
4.9 (12 reviews)
Petar
£40
/h
1st lesson free!
4.9 (17 reviews)
Farooq
£40
/h
1st lesson free!
4.9 (7 reviews)
Dr. Kritaphat
£49
/h
1st lesson free!
4.9 (36 reviews)
Intasar
£48
/h
1st lesson free!
4.9 (28 reviews)
Paolo
£30
/h
1st lesson free!
4.9 (23 reviews)
Shane
£25
/h
1st lesson free!
5 (16 reviews)
Jamie
£25
/h
1st lesson free!
5 (17 reviews)
Matthew
£30
/h
1st lesson free!
4.9 (12 reviews)
Petar
£40
/h
1st lesson free!
4.9 (17 reviews)
Farooq
£40
/h
1st lesson free!
4.9 (7 reviews)
Dr. Kritaphat
£49
/h
1st lesson free!

Bar Charts

If you’ve ever kept up with the news, you’ve likely stumbled across a bar chart. The ubiquity of bar charts is in part due to their simplicity. While they can be very basic, they’re powerful tools for conveying information about any data set.

Bar charts are often confused with histograms because of the fact they both visualize data using bars. The main difference between a histogram and a bar chart has to do with the kind of data that they display. While histograms display two quantitative variables, bar charts display one or more categorical variables against a quantitative variable.

In the table below, we’ve summarized the main differences between histograms and bar charts by comparing their characteristics.

 Characteristic Histogram Bar Chart Vertical Axis Quantitative variable Quantitative variable Horizontal Axis Quantitative variable Categorical variable Bars No space between them Spaces between them Order of Bars Order matters Order doesn’t matter

In general, there are three types of bar charts, which include:

• Clustered Bar Chart
• Stacked Bar Chart
• 100% Column Bar Chart

All of these bar charts are used for different purposes and each can be constructed either vertically or horizontally.

Clustered

Clustered bar charts are what you typically think of when bar charts are mentioned. They typically look like the image below.

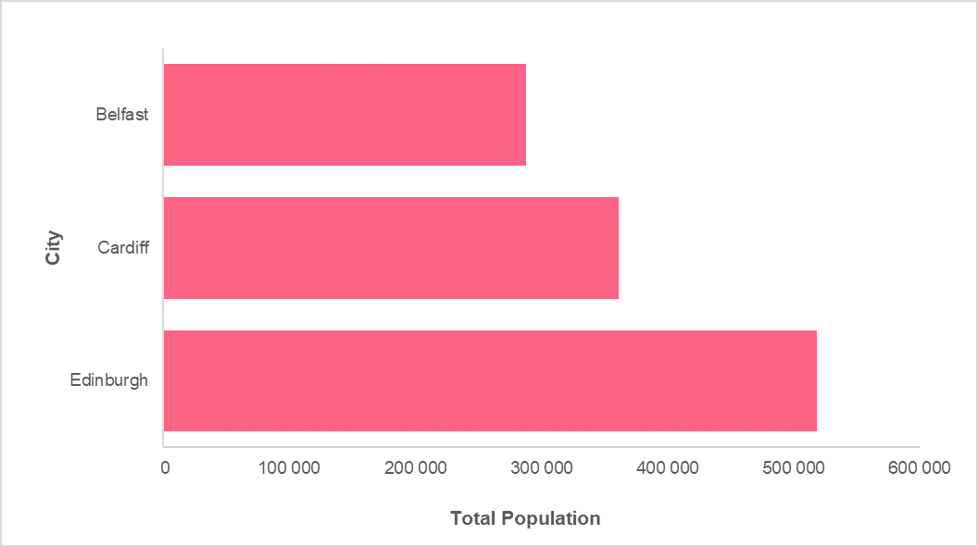

Looking at this image, we can see that there are categories on the horizontal axis and a quantitative variable on the vertical axis. Sometimes, to better display the data, people construct bar charts horizontally. This looks like the following image.

As you can see, the data is now displayed horizontally instead of vertically. This means that the categorical variable is now displayed on the vertical axis while the quantitative variable is now represented by the horizontal axis.These clustered bar charts are used when you want to make a simple comparison between the total amounts of categorical variables.

Stacked

Stacked bar charts are bar charts that are used when you want to compare the totals and proportions of each categorical variable. They look like the image below.

In the image above, you can see that there are two qualitative variables, gender and city, with gender having two categories, male and female. In the stacked bar chart, the totals are represented by the bar as a whole. These bars are, in fact, the same as in our previous example. The difference lies in the division of these totals between the two categories.Meaning, you can compare both the total for each city’s population as well as the division of gender within each total population count. Stacked bar charts can also be presented horizontally, which is shown in the image below.

Here, just like the last example for bar charts, the quantitative variable is now on the horizontal axis while the categorical variables of city and gender are now on the vertical axis.

100% Column

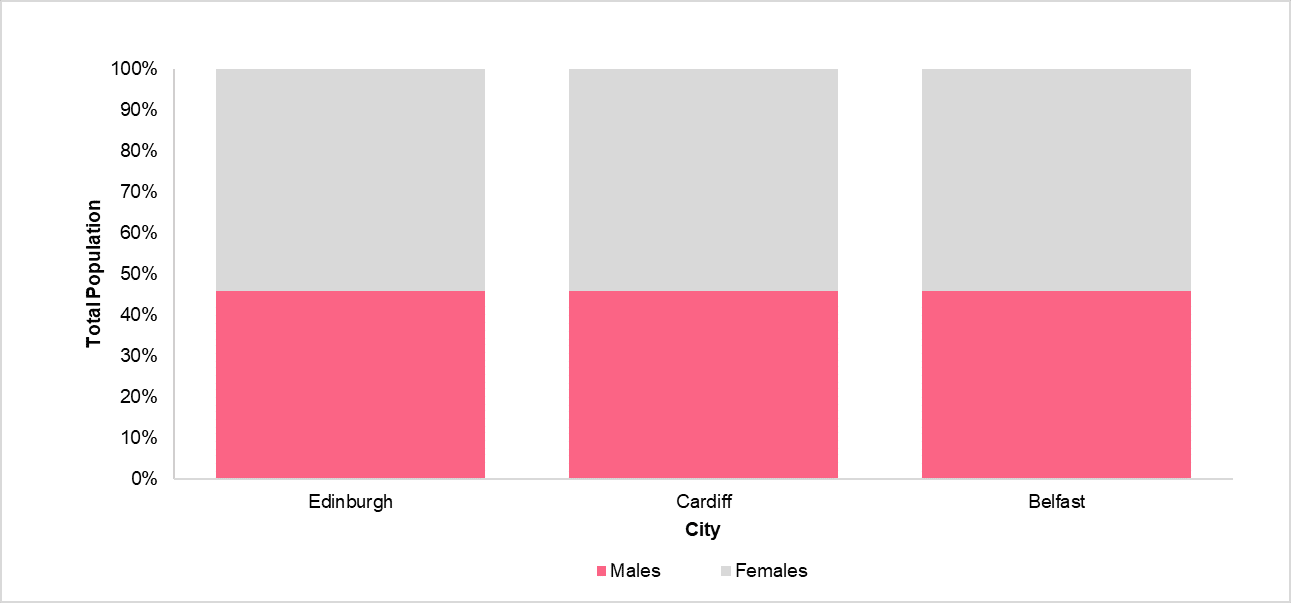

While it may sound strange, the 100% column bar chart is also an easy bar chart to comprehend. This bar chart is used when you want to compare the proportion of each categorical variable to the total amount. This would look like the image below.
