Have you ever wondered how ancient explorers found their way across vast oceans or adventurers charted unknown territories? One crucial tool that aided them in their navigation was the humble compass. In this article, we will delve into the fascinating world of compasses, exploring how they work and the concept of magnetic declination, which plays a significant role in accurate navigation.
What is a Magnetic Field?
"Magnetic fields are regions around magnets where they exert a force on other magnets or magnetic materials"
It's like an invisible force field surrounding a magnet.
When a magnet or a magnetic material enters a magnetic field, it experiences a force. This force can either attract or repel the magnet or material, depending on the magnets' orientation.
The strength of a magnetic field is not the same everywhere within the region. It's strongest near the poles of a magnet, which are the ends where the magnetic force is concentrated. These poles are commonly referred to as the north and south poles of a magnet. We use a magnetic compass to detect and understand magnetic fields.
How do Compasses Work?
Magnetic fields are invisible forces, but we can use a magnetic compass to detect them. A magnetic compass consists of a small bar magnet mounted on a pivot, allowing it to rotate freely. The compass's needle aligns with the direction of the Earth's magnetic field or the magnetic field of another magnet.

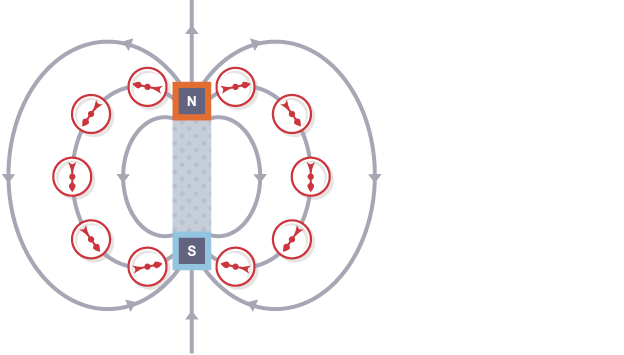

We can use small plotting compasses to map out magnetic fields. Here's how you can do it:
- Place a plotting compass near a magnet on a piece of paper.
- Observe the direction in which the compass needle points. This indicates the direction of the magnetic field at that location.
- Move the plotting compass to various positions in the magnetic field, making sure to mark the direction of the needle each time.
- Repeat step 3 for multiple locations within the magnetic field.
- Connect the marked points on the paper to create field lines representing the magnetic field.
It's important to note that the needle of a plotting compass points towards the magnet's south pole. This helps us understand the orientation of the magnetic field lines.
Following these steps, you can detect and map out magnetic fields using a magnetic compass and plotting compasses. This process allows you to visualize the magnetic field lines and better understand the magnetic properties of magnets and the Earth.
Earth's Magnetic Field
We can observe that the Earth has a magnetic field by looking at the behaviour of a compass. The fact that a compass needle aligns with a specific direction shows that the Earth possesses a magnetic field.
Scientists believe that convection currents within its core generate the Earth's magnetic field. The core is mainly composed of iron and nickel. As these materials flow and circulate in the core, they create the magnetic field surrounding our planet.
When we place a plotting compass in the Earth's magnetic field, we observe that the compass's north pole aligns with the Earth's magnetic field lines. This means that the compass needle points towards the magnetic south. It may seem counterintuitive, but the north pole of a compass points towards the Earth's magnetic south pole.
This alignment of the compass needle with the Earth's magnetic field lines provides evidence for the existence of Earth's magnetic field. It also helps us navigate using compasses, as the north-seeking end of the needle points towards the Earth's magnetic south pole.
Understanding the Earth's magnetic field is significant for various reasons. It plays a crucial role in navigation, allowing us to use compasses for orientation. Additionally, it helps protect us from harmful solar radiation, as the magnetic field acts as a shield, deflecting charged particles from the Sun.
By studying the Earth's magnetic field, we gain insight into the inner workings of our planet and its interactions with the surrounding space environment.

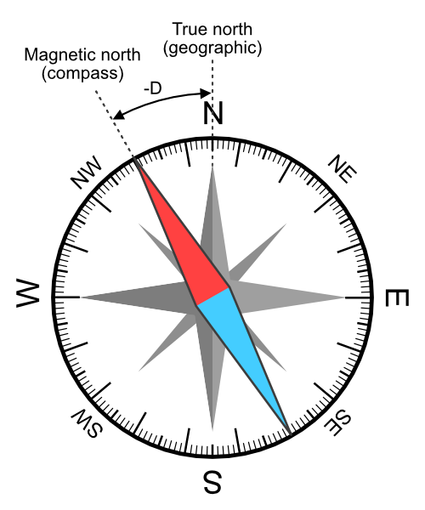

Magnetic Declination
We can define magnetic declination as:
"The angle between the direction of true north and the direction indicated by a magnetic compass is known as magnetic declination"
It's an essential factor to consider when using a compass for navigation.
On Earth, the North and South Pole are the two geographic points defining our planet's rotational axis. However, the magnetic and geographic north poles are not precisely located. The magnetic north pole is slightly offset from the actual geographic north pole. This discrepancy creates what we call magnetic declination.
The value of magnetic declination varies depending on your geographic location on Earth. It can be different in different parts of the world. For example, in some areas, the magnetic north pole may be to the east of true north, while in other areas, it may be to the west.
Impact of Magnetic Declination on Navigation
The presence of magnetic declination can have a significant impact on navigation. When using a magnetic compass for direction, it's crucial to account for the magnetic declination at your location. If you fail to consider this factor, your compass readings may lead you in the wrong direction, potentially causing navigation errors.
Navigators use a technique called applying magnetic variation to compensate for magnetic declination. This involves adjusting the compass readings by the value of the magnetic declination specific to their location. Doing so allows them to align their compass readings with true north and navigate accurately.
It's important to note that magnetic declination values are not constant and can change over time. This means that navigators must update their charts and compass readings periodically to account for any changes in magnetic declination.
Understanding magnetic declination and its impact on navigation is crucial for anyone using a compass for orientation and navigation. By considering this factor and making the necessary adjustments, navigators can confidently navigate more accurately and reach their desired destinations.
It's worth mentioning that modern navigation tools, such as GPS devices, often provide corrected compass readings that automatically account for magnetic declination. However, having a basic understanding of magnetic declination is still valuable in case you need to rely on traditional compass navigation or encounter situations where the correction is not readily available.
