Have you ever wondered about the invisible forces that shape our world? How about harnessing the power of electromagnetism to unveil the mysteries of attraction and repulsion? In this step-by-step guide, we will embark on an electrifying journey, delving into the art of constructing an electromagnet from scratch. Moreover, we will unravel the key factors that influence its strength, offering you a deeper understanding of this remarkable force of nature. So, fasten your seatbelts and prepare to unlock the captivating realm of electromagnetism!
Electromagnets
When an electric current flows through a wire, it produces a circular magnetic field around it. This magnetic field can change the direction of a magnetic compass needle. The strength of the magnetic field is higher:
- When the compass is closer to the wire.
- When the current flowing through the wire is increased.
Solenoids
They are made up of a wire coiled into a spiral shape. When an electric current flows through the wire, the form of the magnetic field generated is very similar to that of a bar magnet. Inside a solenoid, the magnetic field is both strong and even. The small magnetic fields produced by the current in each coil combine to create a stronger overall magnetic field.
What is an Electromagnet?
"A solenoid with an iron core is referred to as an electromagnet"

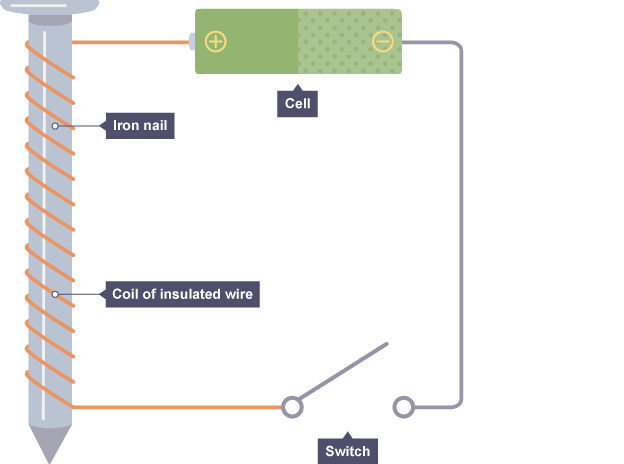

The iron core helps to make the magnetic field of the solenoid stronger. We can create a simple electromagnet by wrapping wire around an iron nail.
Let's explain it a bit further:
An electromagnet is a special kind of magnet created when electric current flows through a coil of wire. Wrapping the wire around an iron core, such as an iron nail, enhances magnetism. The iron core acts like a pathway for the magnetic field, allowing it to concentrate and become stronger.
Passing an electric current through the wire generates a magnetic field around the iron core. This magnetic field is temporary and only exists when the current is flowing. As soon as we turn off the current, the magnetic field disappears.
Using an iron core in a solenoid can create a powerful electromagnet that can attract or repel other magnets, pick up metal objects, or even be used in devices like electric motors or doorbells. The more turns of wire we have in the coil and the stronger the electric current, the stronger the electromagnet becomes. Electromagnets have many practical applications in everyday devices. For example, they are used in electric bells and door locks that can be operated from a distance.
Constructing and Electromagnet - A Step-by-Step Guide
Here is a step-by-step guide to constructing your electromagnet:
Materials
Materials you'll need:
- Iron nail or rod
- Insulated copper wire
- Battery (AA or AAA)
- Paperclips or small metal objects for testing
Steps
Follow these steps to create your electromagnet:
Step 1: Gather your materials. Ensure you have all the necessary materials: an iron nail or rod, insulated copper wire, a battery (such as AA or AAA), and some paper clips or small metal objects to test the electromagnet.
Step 2: Prepare the iron nail or rod. Ensure the iron nail or rod is clean and free from dirt or rust. This will help maximize the magnetic effect.
Step 3: Wind the wire around the nail or rod. Take one end of the insulated copper wire and tightly wrap it around one end of the iron nail or rod. Leave a small length of wire (about 10 cm) free at the beginning for connecting to the battery later.
Step 4: Continue winding the wire. Continue winding the wire tightly around the iron nail or rod, making multiple turns along its length. Aim for around 50 to 100 turns, if possible. Make sure the coils are close together but not overlapping.
Step 5: Secure the wire. Once you reach the end of the wire or the desired number of turns, secure it in place by twisting the free end around the coil. Ensure that the wire is tightly held and won't come loose.
Step 6: Connect the wire to the battery Strip the insulation from the free end of the wire. Now, carefully connect this end to the positive terminal of the battery. You can wrap the wire around the airport using an AA or AAA battery or use an alligator clip for a secure connection.
Step 7: Test your electromagnet Place some paperclips or small metal objects near the end of the iron nail or rod. When the wire is connected to the battery, the electromagnet should attract and hold these objects. Observe the magnetic effect.
Step 8: Disconnect the wire from the battery. After testing, disconnect the wire from the battery to turn off the electromagnet. This is important to avoid overheating or damaging the wire.
Remember to safely handle the wire and battery, ensuring proper insulation and avoiding short circuits. These steps will help you create your electromagnet and observe its magnetic properties.
Factors Affecting the Strength of an Electromagnet
Here are the key factors affecting the strength of an electromagnet:
- Number of Turns: The number of turns in the coil of wire around the iron core affects the power of the electromagnet. Increasing the number of turns increases the magnetic field produced by the electromagnet. Each turn contributes to the magnetic effect, resulting in a stronger electromagnet.
- Current: The amount of current flowing through the wire coil directly impacts the electromagnet's strength. Increasing the current increases the strength of the magnetic field generated. This is because a larger current creates more moving charged particles, which cause a stronger magnetic field.
- Core Material: The material used for the electromagnet's core also affects its strength. Iron and steel are commonly used as core materials because they are easily magnetized. These materials help concentrate the magnetic field and increase its strength. Choosing a suitable core material is essential to maximize the magnetic effect of an electromagnet.
- Length of the Core: The length of the iron core within the coil affects the electromagnet's strength. A more extended core allows for more wire turns, resulting in a stronger magnetic field. Therefore, increasing the core length generally enhances the electromagnet's strength.
- Distance from the Core: The distance between the object to be attracted and the electromagnet (air gap) affects the strength of attraction. The magnetic field strength decreases as the distance from the core increases. Hence, keeping the object as close to the electromagnet as possible increases its strength.
Understanding these factors is important for designing and constructing electromagnets with optimal strength for various applications. It is crucial to manipulate these factors in a controlled manner to achieve the desired magnetic effect and ensure the successful operation of devices that utilize electromagnets, such as electric bells, door locks, and motors.
