In the world of physics, a remarkable phenomenon, electromagnetic induction, unveils the mysterious connection between magnetism and electricity. This captivating concept lies at the heart of generating an electric current in a conductor without the traditional reliance on power supply connections. But how does it work? Join us on a journey of discovery as we delve into the intricacies of electromagnetic induction, unravelling its secrets and shedding light on how this mesmerizing phenomenon brings forth the flow of electric current. Prepare to be fascinated as we uncover the inner workings of electromagnetic induction and explore the extraordinary world it unveils.
What is Electromagnetic Induction?
When introducing an electric current in a wire, connecting it to a power supply is not the only approach. An alternative method involves electromagnetic induction, which utilizes a magnetic field to induce electricity in the wire. This intriguing phenomenon occurs because the magnetic field surrounding a coil changes when the coil "cuts through" magnetic field lines.
Two standard methods of achieving electromagnetic induction are moving a bar magnet inside a coil of wire or moving a coil of wire within a magnetic field. As the magnet or coil is moved back and forth, the direction of the induced current changes, resulting in the generation of alternating current (a.c.). This process offers an innovative way to create electric current without solely relying on conventional power supply connections, demonstrating the fascinating relationship between magnetism and electricity. We can define electromagnetic induction as:
"When a conductor or a coil is in motion through a magnetic field, or when a magnetic field changes around it, an interesting phenomenon occurs called EM induction"
During this process, age is induced in the conductor or coil.
How does electromagnetic induction generate electric current in the conductor?
To understand how this happens, let's delve into the mechanics. As the conductor or coil moves through the magnetic field, it cuts through the magnetic field lines, causing an interaction between them. This interaction leads to generating a voltage in the conductor or coil.
This occurrence is commonly known as the generator effect, and it is the reverse of the motor effect, which you may have encountered before. In the motor effect, a current exists in the conductor, which experiences a force due to the magnetic field.
However, the generator effect has no initial current in the conductor or coil. Instead, when it moves through the magnetic field, a current is induced or created within it. The conductor or coil cutting through the magnetic field lines makes this current induction possible.
In short, EM induction is a process that allows us to generate electricity. Moving a conductor or coil through a magnetic field or altering the magnetic field around it can induce a voltage and subsequently generate an electric current. This phenomenon, known as the generator effect, is distinct from the motor effect and relies on the interaction between the conductor or coil and the magnetic field.
Generating Potential Difference (Electromagnetic Induction)
- A potential difference (voltage) is induced in a conductor when relative movement between the conductor and a magnetic field exists. exists

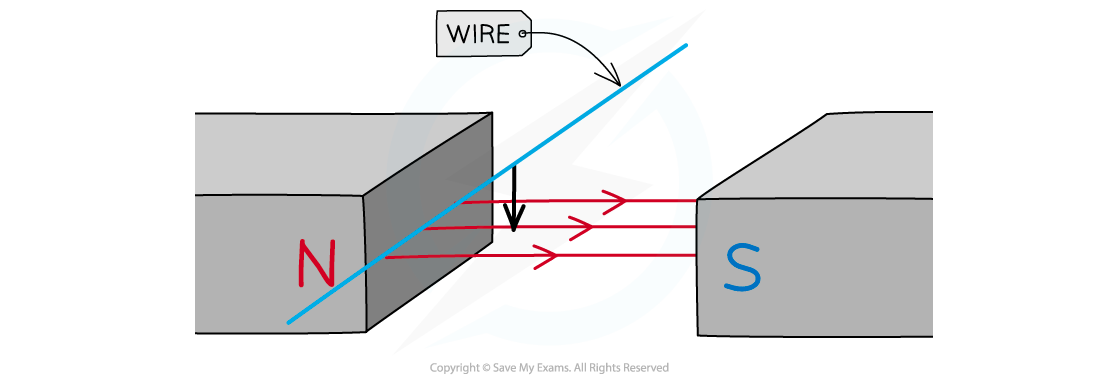

- Moving an electrical conductor (e.g., wire) through a fixed magnetic field causes the conductor to cut through the magnetic field lines.
- Cutting through the magnetic field lines induces a potential difference in the conductor.
- Moving a magnetic field relative to a fixed conductor (e.g., moving a magnet through a coil) causes the magnetic field lines to intersect with the turns of the coil.
- This interaction induces a potential difference in the coil.
- The magnitude of the induced potential difference can be measured using a sensitive voltmeter.
- If the conductor is part of a complete circuit, the induced potential difference leads to the flow of electric current in the conductor.
Factors Influencing the Induced Potential Difference
Here are the factors that affect the induced potential difference:
1. The speed of movement
- Increasing the speed at which the wire, coil, or magnet moves results in a higher magnetic field line cutting. rate
- This leads to an increased induced potential difference.
2. The number of turns on the coils
- Adding more turns to the coils of wire increases the potential difference induced.
- Each coil cuts through the magnetic field lines, and the total potential difference is the sum of all the coils' contributions.
3. The size of the coils
- Increasing the area of the coils enhances the induced potential difference.
- With a larger coil, more wire is available to cut through the magnetic field lines, resulting in a higher potential difference.
- In simple words, when we increase the area of the coils, we provide more wire for the magnetic field lines to cut through.
- This means more field lines interact with the wire, causing the electrons to move more energetically and producing a higher potential difference.
4. The strength of the magnetic field
- Amplifying the strength of the magnetic field increases the induced potential difference.
- A stronger magnetic field means more field lines are intersected, leading to a more significant potential difference.
- In simple words, if we imagine the magnetic field as a web of invisible lines, the stronger the field, the more lines the conductor cuts through, generating a more significant electrical potential
5. The orientation of the magnet's poles
- Reversing the direction in which the wire, coil, or magnet moves alters the direction of the induced potential difference.
- The orientation of the magnet's poles determines the polarity of the induced potential difference.
- If you change the direction the wire, coil, or magnet moves, you also change the direction of the induced potential difference.
- Additionally, the orientation of the magnet's poles determines whether the induced potential difference is positive on one side and negative on the other or vice versa.
Considering these factors, we can manipulate and optimize the induced potential difference in an electromagnetic induction system.
