The Motor Effect
"When an electric current flows through a wire, it gives rise to a magnetic field around the wire. This magnetic field can interact with another magnetic field, resulting in a force that acts perpendicular to the wire. This phenomenon is known as the motor effect"
The motor effect is a fundamental concept in physics that describes the interaction between an electric current and a magnetic field, leading to the generation of a force. This phenomenon is crucial in various devices like electric motors and generators.
Imagine a scenario where a wire carrying an electric current is placed near a magnetic field. A permanent magnet or an electromagnet can produce this magnetic field. When the wire and the magnetic field interact, a force is exerted on the wire, causing it to move in a direction perpendicular to both the current and the magnetic field.
How is Motor Effect Related to the Current, Magnetic Field, and Force Direction?
To understand this effect better, consider the following key points:
- Electric current and magnetic fields: Electric current is the flow of charged particles, such as electrons, through a conductor like a wire. Whenever current flows, it generates a magnetic field around the wire. This magnetic field has a specific direction determined by the right-hand rule, described in detail in the next section. The direction of the magnetic field can be determined by wrapping your right hand around the wire with your thumb pointing in the direction of the current flow. Your curled fingers will then indicate the direction of the magnetic field lines.
- Interaction between magnetic fields: When the wire carrying current is placed near a magnetic field, the magnetic field produced by the current interacts with the external magnetic field. The two fields exert forces on each other due to their magnetic properties.
- Force on the wire: A force is exerted on the wire due to the interaction between the magnetic fields. This force is perpendicular to the direction of the current in the wire and the direction of the external magnetic field. It follows the right-hand rule, where the thumb points in the direction of the force, the first finger points in the direction of the magnetic field, and the second finger points in the direction of the current.
Motor Effect Applications
The motor effect is the foundation of electric motors, which convert electrical energy into mechanical energy. In an electric motor, a coil of wire is placed in a magnetic field, and current is passed through the coil. The resulting force causes the coil to rotate, producing mechanical motion. This rotation can be harnessed to drive various devices, such as fans, appliances, and vehicles.
Fleming's Right-hand Rule
Fleming's left-hand rule is a handy tool used to determine the direction of the force in the motor effect.
- When the electric current flowing through a wire increases, the force on that wire in a magnetic field also increases.
- Increasing Magnetic Field Strength: Similarly, when the strength of the magnetic field around the wire increases, the force on the wire also increases.
For a given combination of current and magnetic field strength, the force is the greatest when the direction of the present is perpendicular (at a right angle) to the direction of the magnetic field. If the current and magnetic field are parallel (in the same order), there is no force on the wire. The wire won't experience any motor effect force.
How to Use It?
Here's a unique and simplified explanation of the motor effect and Fleming's left-hand rule using a practical approach:

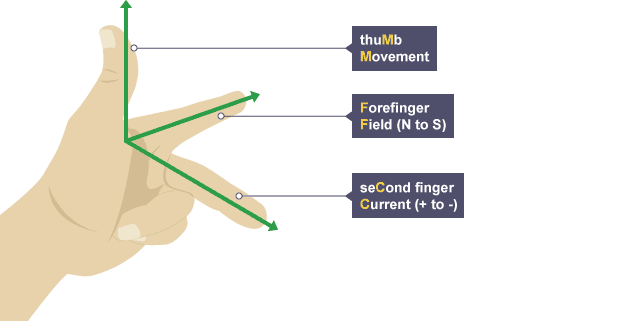

- Hand Gesture: To understand the motor effect and Fleming's left-hand rule, make a hand gesture by holding your thumb, forefinger, and second finger at right angles to each other.
- Forefinger Alignment: Align your forefinger with the direction of the magnetic field lines. Imagine the magnetic field lines pointing from the north to the south pole.
- Second Finger Alignment: Align your second finger with the direction of the current in the conductor. Visualize the current flowing from the positive terminal to the negative terminal.
- Thumb Direction: The direction in which your thumb points represents the direction of the motor effect force acting on the conductor carrying the current. The muscle acts perpendicular to the magnetic field lines (forefinger) and the current (second finger).
Using this hand gesture and aligning your fingers, you can determine the relationship between the magnetic field, current, and the resulting motor effect force.
Understanding Fleming's left-hand rule in this way can help you visualize and remember how the magnetic field and current direction influence the motor effect force. It provides a practical and unique approach to comprehending the motor effect phenomenon.
Calculating Motor Effect Force
To determine the force exerted on a wire that carries a current at right angles to a magnetic field, you can use the following equation:
Force = magnetic flux density × current × length
F= B x I x l
In this equation:
- The symbol F represents the force measured in newtons (N). It indicates the strength of the force experienced by the wire.
- The symbol B represents the magnetic flux density, also known as magnetic field strength, measured in tesla (T). It quantifies the intensity of the magnetic field surrounding the wire.
- The symbol I represent the current flowing through the wire, measured in amperes (A). It indicates the amount of electrical charge passing through the wire per unit of time.
- The symbol l represents the length of the wire, measured in meters (m). It specifies the extent of the wire subject to the magnetic field.
You can calculate the motor effect force exerted on the wire by substituting the appropriate values for magnetic flux density, current, and length into this equation.
Understanding this equation and its components is crucial for determining and quantifying the force involved in the motor effect. It allows you to analyze and predict the behaviour of wires experiencing the interaction between electric current and magnetic fields.
Example
Suppose a wire with a length of 80 cm carries a current of 3.5 A. Calculate the force acting on the wire when placed at right angles in a magnetic field with a magnetic flux density of 0.6 T.
Solution
Given: Current (I) = 3.5 A Length of the wire (l) = 80 cm = 0.8 m Magnetic flux density (B) = 0.6 T
Using the formula for calculating the force on the wire:
Force (F) = B × I × l
Substituting the given values:
F = 0.6 T × 3.5 A × 0.8 m
F = 0.6 × 3.5 × 0.8 N
F = 1.68 N
Therefore, the force acting on the wire when placed at right angles in a magnetic field with a magnetic flux density of 0.6 T and a current of 3.5 A flowing through an 80 cm wire is 1.68 Newtons (N).
