In today's digital age, where vast amounts of information are generated and consumed every second, efficient and reliable data storage and retrieval cannot be overstated. In this article, we delve into magnetic storage devices, exploring their working principles and significance in storing and retrieving data. Join us as we uncover the secrets behind the magnetic magic that powers our digital world.
An Overview of Magnetism
Magnetism: A Brief Overview It is essential to grasp the basic concepts of magnetism to understand the role of magnetic devices. GCSE Physics covers magnetic fields, magnetic materials, and magnetic induction. These concepts provide the foundation for comprehending the operation of magnetic devices in data storage.
Magnetic Storage Devices
Magnetic storage devices, such as hard disk drives (HDDs), are commonly used for storing digital data. They were named "hard" to distinguish them from floppy disks, commonly used in the 1980s. These drives have been around since the 1920s and are the oldest digital storage form, predating computers. They utilize the principles of magnetism to store and retrieve information.
Key Features of Magnetic Devices
- Key Features HDDs are mechanical devices with many moving parts.
- This mechanical nature might make them more prone to failure. However, HDDs are designed as sealed units, so the disk and drive mechanism are well protected from damage and wearing out.

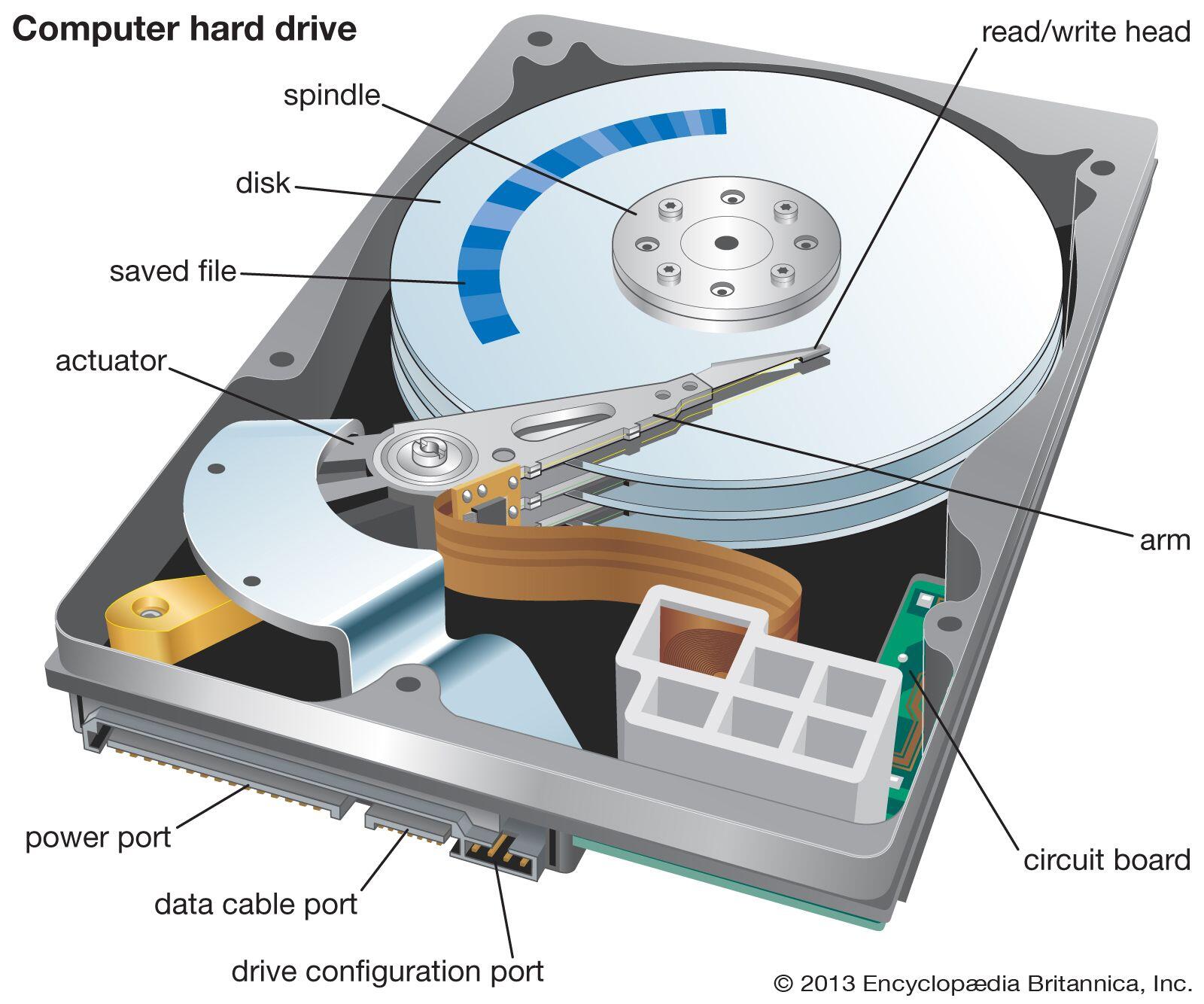

- Typically, a disk unit consists of one or more metal platters with a magnetic coating, a spindle to hold and spin the platters, and a read-write head on an arm that moves across the platters.
- The number of platters determines the total storage capacity of the Disk, and each platter has two sides that can be used for data storage.
- The read-write head is responsible for storing and retrieving data on the platters.
How Magnetic Devices Work?
Here is how these devices work:
- Magnetizing the Disk: Inside an HDD are metal disks known as platters. Each platter is divided into tiny sections called bits. The read/write head of the HDD uses magnetic fields to magnetize or demagnetize these sections. A magnetized section represents a binary '1,' while a demagnetized section represents a binary '0.' This binary code is used to represent data.
- Reading and Writing Data: The read/write head moves across its surface as the disk spins. When writing data, the head magnetizes or demagnetizes the corresponding disk section as it passes. The head detects whether a section is magnetized to read data. This information is then translated back into digital data that the computer can access and use.
"Remember that the operation of magnetic storage devices is based on the principles of magnetism.
Working Principle of Hard Disc Drives
Retrieving Data
- The working principle of HDDs is based on magnetism. HDDs consist of multiple circular platters made of non-magnetic material like aluminium or glass.
- Each platter is coated with a thin layer of a magnetic material, typically a compound of iron, cobalt, and nickel.
- This magnetic coating allows data to be written and retrieved.
- While retrieving data, a read head and an electromagnet are positioned over the desired track on the platter.
- As the platter spins at a high speed, the read head detects the changes in the magnetic field caused by the aligned magnetic particles passing underneath it.
- These changes induce an electrical signal in the read head, which is then amplified, processed, and converted into binary data by the HDD's controller.
- The binary data is then sent to the computer or other devices for further processing and utilization.
Storing Data
- To store data on an HDD, a write head, which is a small electromagnet, applies a magnetic field to the platter's surface.
- This magnetic field aligns the magnetic particles in a particular pattern, representing the stored information's binary data (0s and 1s).
- The alignment of the magnetic particles persists even when the power is turned off, ensuring data retention.
Magnetic storage devices like HDDs have evolved significantly over the years regarding storage capacity, speed, and reliability. Technological advancements have led to higher areal densities, allowing more data to be stored on each platter. Improvements in read/write head designs, spindle motor speed, and data transfer rates have also enhanced performance.
Despite the emergence of solid-state drives (SSDs) and other storage technologies, HDDs continue to be widely used due to their cost-effectiveness, high storage capacities, and compatibility with existing systems. They are commonly found in desktop computers, servers, and large-scale storage arrays.
Advantages of Magnetic Storage Drives
Here are some of the advantages of using magnetic disc drives:
- Capacity: One of the critical advantages of magnetic disk drives is their storage capacity. At a lower unit cost, HDDs can provide greater storage capacity than other technologies, such as solid-state drives (SSDs). This makes them suitable for applications requiring large amounts of data storage, such as desktop computers and servers.
- Cost: Magnetic disk drives offer a cost-effective storage solution. They are generally less expensive than other storage technologies, making them a viable choice for individuals and organizations with budget constraints. This affordability allows for larger storage capacities without significant financial investment.
- Long-term Storage: Magnetic disk drives are well-suited for long-term data storage. They have a high level of reliability and can retain data without degradation over time. This makes them suitable for archiving and storing large datasets, ensuring valuable information is preserved for extended periods.
Disadvantages of Magnetic Disk Drives
- Portability: Magnetic disk drives are less portable than other storage formats, such as CDs, DVDs, or USB memory sticks. Typically, they are built to be installed inside computers or external enclosures. Their larger physical size and dependency on power and data connections limit their portability compared to more compact and plug-and-play storage options.
- Fragility: Magnetic disk drives can be fragile and sensitive to physical impacts. If an HDD is bumped, dropped, or subjected to excessive shock, it can damage the internal Disk. This damage can lead to data loss or system malfunction. Handling and transporting magnetic disk drives must be taken with caution to avoid potential issues.
