In this article, we delve into the world of step-up and step-down transformers, unravelling the mysteries behind their operation, highlighting their key characteristics, and exploring their applications in various fields. Join us on this electrifying journey as we shed light on these transformers' roles in electrical power distribution and utilization.
Transformer
We can define a transformer as:
"A device that can alter the size of an alternating current or voltage is known as a transformer"
Transformers are essential devices in electrical systems. They consist of two wire coils wrapped around an iron core called the primary and secondary windings. Transformers operate based on the principle of electromagnetic induction. When an alternating current (AC) flows through the primary coil, it changes the iron core's magnetic field. This changing magnetic field induces an alternating voltage in the secondary coil.
Transformer Equation
The transformer equation is given by:
Vp/Vs = Np/Ns
Here:
- VP is the primary voltage
- Vs is the secondary voltage
- Np is the number of turns in the primary coil
- Ns is the number of turns in the secondary coil.
This equation demonstrates the relationship between the voltages and the number of turns in a transformer's primary and secondary coils.
Use of Transformers in Electrical Transmission
Electricity transmission over long distances can lead to energy loss due to wire heating. Power stations employ step-up transformers to transfer electrical energy at high voltages to combat this. As the electricity reaches localities, step-down transformers reduce the voltage for domestic usage. These transformers, placed after power stations and before buildings, play a crucial role in minimizing energy loss and ensuring efficient electricity distribution.
Structure and Working Principles of a Transformer
- A transformer is essentially composed of two coils of wire, known as windings, wound around a common iron core.
- The primary winding is connected to the power source, while the secondary winding delivers the output voltage.
- Transformers operate based on the principle of electromagnetic induction, where a changing magnetic field induces a voltage in a nearby coil.
- In the case of transformers, an alternating current (AC) in the primary winding produces a varying magnetic field in the iron core, which, in turn, induces an alternating voltage in the secondary winding.
Step-up and Step-down Transformers
There are two types of transformers: step-up and step-down.
1. Step-Up Transformers
- Step-up transformers increase the voltage of an AC signal.
- They have more turns in the secondary winding than in the primary winding, resulting in voltage amplification.
- Step-up transformers are commonly used in power stations and substations to raise the voltage for efficient long-distance transmission.
- Higher voltage reduces energy losses during transmission and allows for the economical use of thinner and more manageable transmission lines.
- This higher voltage is eventually released for safe use in homes and businesses.
- Step-up transformers contribute to the efficient and reliable delivery of electricity by stepping up the voltage.
2. Step-Down Transformers
- As the name suggests, step-down transformers reduce an AC signal's voltage.
- They have fewer turns in the secondary winding compared to the primary winding, resulting in voltage reduction.
- Step-down transformers are extensively used in electrical distribution systems to lower the high voltage transmission lines carry to safe and usable levels for homes, offices, and industrial facilities.
- By stepping down the voltage, these transformers ensure that electrical appliances and devices receive the appropriate voltage required for their operation, protecting them from potential damage caused by excessive voltage.
Both step-up and step-down transformers are integral to the functioning of electrical power systems. Step-up transformers enable efficient long-distance transmission by elevating the voltage, while step-down transformers bring the voltage to safe levels for end-user consumption. Together, they ensure the reliable and cost-effective distribution of electrical energy.
Role of Step-up and Step-down Transformers in Transmission of Electricity

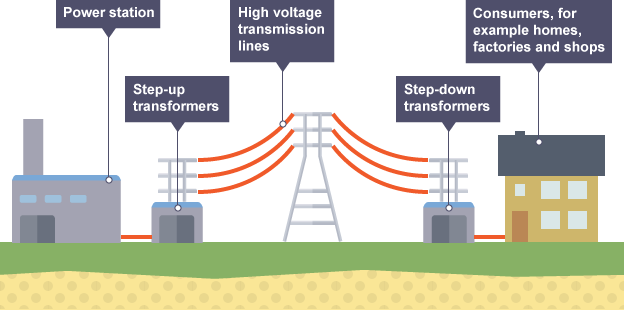

A remarkable system that facilitates the journey of electricity from power stations to consumers is called the National Grid. This vast network enables the utilization of distant power stations and ensures the efficient integration of various energy resources to meet the country's electricity demands. A crucial aspect of this process involves the utilization of step-up and step-down transformers. The diagram below shows the main features of a national grid.
Role of Step-up Transformers
Step-up transformers play a pivotal role in the transmission of electricity. They are deployed at power stations to boost the voltage levels of the generated electricity. This heightened voltage is essential for efficient long-distance transmission, minimizing energy losses. By stepping up the voltage, step-up transformers allow the National Grid to transport electricity across vast distances, catering to diverse regions and their unique power needs.
In the event of a breakdown at one power station, the National Grid remains resilient and uninterrupted, thanks to its interconnected nature. The grid seamlessly redirects electricity from other operational power stations, ensuring a continuous and reliable power flow. This flexibility is vital for maintaining a stable electricity supply, even during unforeseen circumstances.
Moreover, the National Grid adeptly responds to the varying demand for electricity. During peak periods when electricity usage surges, step-up transformers work with the grid to deliver a more excellent electricity supply. This dynamic response ensures that the power demands of consumers are met, supporting industries, businesses, and households when electricity consumption is at its highest.
Role of Step-down Transformers
On the other hand, step-down transformers come into play closer to the end user. They are strategically placed in localities and buildings to decrease electricity voltage, making them safe and suitable for use by appliances and devices. Step-down transformers enable the seamless distribution of electricity at levels compatible with everyday applications, ensuring electrical equipment's protection and optimal functionality.
Significance of Using Higher Voltage for Energy Conservation
As current intensifies within a cable, so does heat dissipation into the surroundings. This, in turn, results in higher energy wastage when compared to lower current levels.
Utilizing high voltage becomes crucial to mitigating these losses and promoting efficiency. When voltage is stepped up using a transformer, the corresponding current is stepped down. A step-up transformer at the power station elevates the voltage while reducing the current. This strategic transformation paves the way for numerous benefits in terms of electrical transmission.
The current flowing through overhead cables is kept relatively small by stepping up the voltage, enabling electricity distribution over long distances across the country. This approach significantly curtails heat losses that would otherwise occur within the cables. The result is reduced energy wastage and a substantial decrease in power stations required to sustain the transmission network.
The significance of utilizing high voltage, coupled with step-up transformers, is twofold:
- Firstly, it enables the efficient transportation of electricity over extended distances, minimizing energy losses along the way.
- Secondly, it optimizes the utilization of resources by reducing the demand for additional power stations. This synergy between high voltage and transformers contributes to a more sustainable and cost-effective electrical transmission system.
