Graph the Following Absolute Value Functions:

The best Maths tutors available

Exercise 1

$f(x) = \left | x - 2 \right |$

Exercise 2

$f(x) =\left | { x }^{ 2 } - 4x + 3 \right |$

Exercise 3

$f(x) =\left | - { x }^{ 2 } + 5x - 4 \right |$

Exercise 4

$f(x) = \left | x \right | - x$

Exercise 5

$f(x) = \frac { \left | x \right | }{ x }$

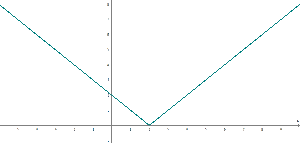

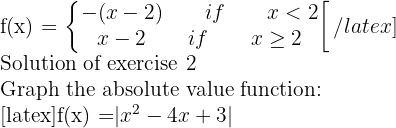

Solution of exercise 1

Graph the absolute value function:

$f(x) = \left | x - 2 \right |$

$x - 2 = 0 \qquad x = 2$

$f(x) = \left\{\begin{matrix} - (x - 2) \qquad if \qquad x < 2 \\ x - 2 \qquad if \qquad x \geq 2 \end{matrix}\right$

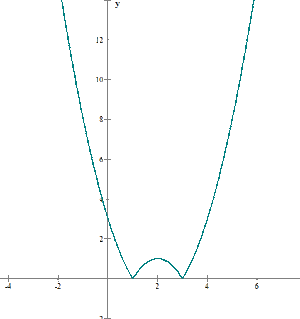

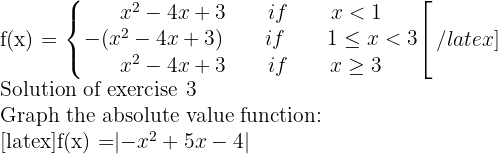

Solution of exercise 2

Graph the absolute value function:

$f(x) =\left | { x }^{ 2 } - 4x + 3 \right |$

${ x }^{ 2 } - 4x + 3 = 0 \qquad x = 1 \qquad x = 3$

$f(x) = \left\{\begin{matrix} { x }^{ 2 } - 4x + 3 \qquad if \qquad x < 1 \\ - ({ x }^{ 2 } - 4x + 3) \qquad if \qquad 1 \leq x < 3 \\ { x }^{ 2 } - 4x + 3 \qquad if \qquad x \geq 3 \end{matrix}\right$

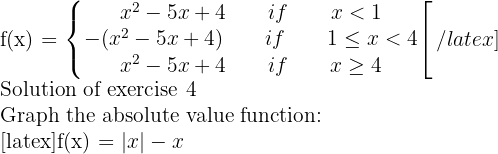

Solution of exercise 3

Graph the absolute value function:

$f(x) =\left | - { x }^{ 2 } + 5x - 4 \right |$

$- { x }^{ 2 } + 5x - 4 = 0 \qquad { x }^{ 2 } - 5x + 4 = 0$

$x = 1 \qquad x = 4$

$f(x) = \left\{\begin{matrix} { x }^{ 2 } - 5x + 4 \qquad if \qquad x < 1 \\ - ({ x }^{ 2 } - 5x + 4) \qquad if \qquad 1 \leq x < 4 \\ { x }^{ 2 } - 5x + 4 \qquad if \qquad x \geq 4 \end{matrix}\right$

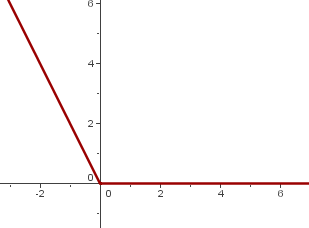

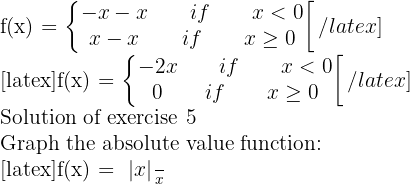

Solution of exercise 4

Graph the absolute value function:

$f(x) = \left | x \right | - x$

$x = 0$

$f(x) = \left\{\begin{matrix} - x - x \qquad if \qquad x < 0 \\ x - x \qquad if \qquad x \geq 0 \end{matrix}\right$

$f(x) = \left\{\begin{matrix} -2x \qquad if \qquad x < 0 \\ 0 \qquad if \qquad x \geq 0 \end{matrix}\right$

Solution of exercise 5

Graph the absolute value function:

$f(x) = \frac { \left | x \right | }{ x }$

$x = 0$

$f(x) = \left\{\begin{matrix} \frac { -x }{ x } \qquad if \qquad x < 0 \\ \frac { x }{ x } \qquad if \qquad x \geq 0 \end{matrix}\right$

$f(x) = \left\{\begin{matrix} -1 \qquad if \qquad x < 0 \\ 1 \qquad if \qquad x \geq 0 \end{matrix}\right$
